Ic/Air3 Dc Smart Ceiling Fan With Led Light – 56 Inch

Description

The IC/Air3 DC ceiling fan from The Modern Fan Co. with a 56″ span and an LED.

Details:

• 6-speed, reversible DC motor
• 56” span, injection-molded ABS blades (solid color or surface-printed woodgrain)
• Includes 8” and 18” down rods; longer options are also available
• Slope compatible up to 33°; adapter available for slopes up to 45°
• Designed by Guto Indio da Costa
• ETL listed for dry and damp locations

High-Speed Performance Data:

Based on the DOE standardized test method (installed with an 8″ down rod).

• RPM: 170
• CFM (Cubic Feet per Minute): 5,705
• Watts (fan only): 28.17
• CFM/Watt: 203

Controller Options:

• Wall Control: For radio frequency operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), decora-style wall plate (which comes in white only), battery, and RF canopy receiver.
• Remote Control: For remote operation of a fan or fan with light. This uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. It includes a handset, wall mount holder, batteries, and an RF canopy receiver. This option is for use with an on/off toggle switch providing power supply to the fan.
• Wall/Remote Combo: A combination control set for remote operation of a fan or fan and light. It uses only one circuit (two wires) and provides six speeds, full-range dimming, and reverse functions. Included is the wall control (with master power switch), a decora-style wall plate (which comes in white only), a handset, batteries, and an RF canopy receiver.

Materials: Die-cast aluminum with injection-molded ABS blades

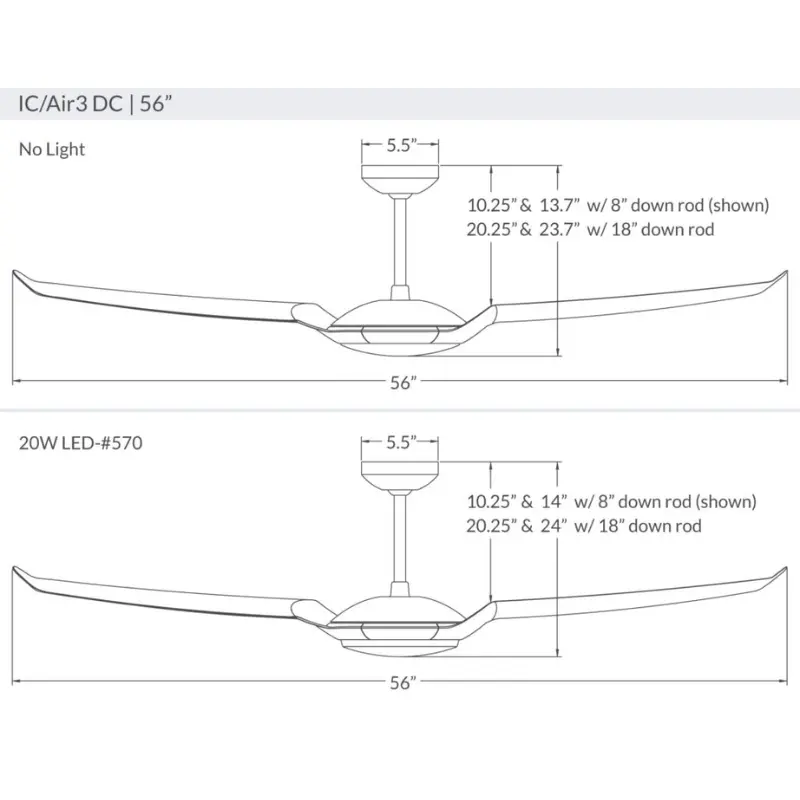

Dimensions (w/ 8″ down rod):

• 14 H x 56 Dia. inches
• Base Dia. 5.5 inches
• Weight: 15 lbs

Light Source:

• 20W LED
• 1800 Lumens
• Color Temperature: 3000K
• 90 CRI (Dimmable)
• Light is behind an opal glass diffuser

Downloads:

• Cutsheet
• Installation Manual

Looking for this fan without an LED option? Check out the IC/Air3 DC-52.
