Torsion 20W Linear Led Suspension Light – 52 Inch

Description

The Torsion ceiling fan from The Modern Fan Co. with a 52″ span and a 20W LED.

Details:

• 172 mm x 20mm AC motor with reverse switch on fan body
• 52” span, plywood blades (also available in 62″ span)
• Includes 6” and 16” down rods; longer options are also available
• Slope compatible up to 33°; adapter available for slopes up to 45°
• Designed by Dave Ellis
• ETL listed for dry and damp locations

High-Speed Performance Data:

Based on the DOE standardized test method (installed with a 4.5″ down rod).

• RPM: 225
• CFM (Cubic Feet per Minute): 5,103
• Watts (fan only): 72.30
• CFM/Watt: 71

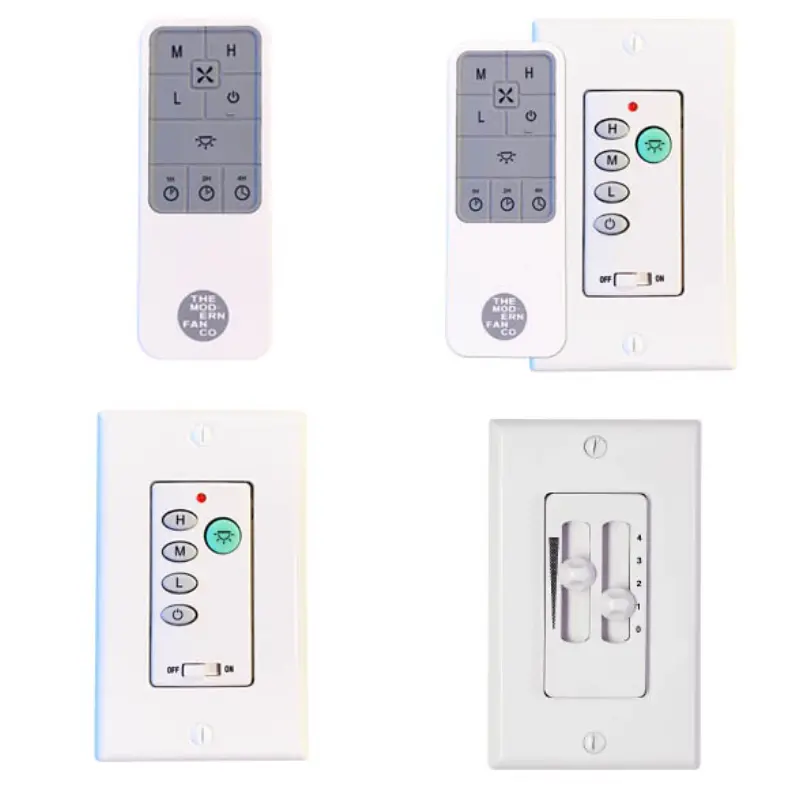

Controller Options:

• Fan & Light – 2 Wire: For operation of a fan with light. Uses only one circuit (two wires). Provides three speeds and a dimming or “on/off” light function. Includes wall control, a decora-style wall plate (white only), and an RF canopy receiver.
• Fan & Light – 3 Wire: For operation of a fan with light. It requires three wires (two hot and a common neutral) for the separation of fan and light operation. It provides four fan speeds, dimming functions for light, and comes with a decora-style wall plate (white only).
• Handheld Remote: For operation of a fan or a fan with light. Uses only one circuit (two wires). Provides three speeds, a dimming or “on/off” light function, and timer options for delayed shutdown. Includes a handset, battery, wall-mountable holder, and an RF canopy receiver.
• Wall & Remote: A combination control package for the operation of a fan or a fan with light. Uses only one circuit (two wires). Provides three speeds and a dimming or “on/off” light function. Includes a remote handset, wall-mountable holder, battery, wall control, decora-style wall plate (white only), and an RF canopy receiver.

Materials: Die-cast aluminum and stamped steel with plywood blades

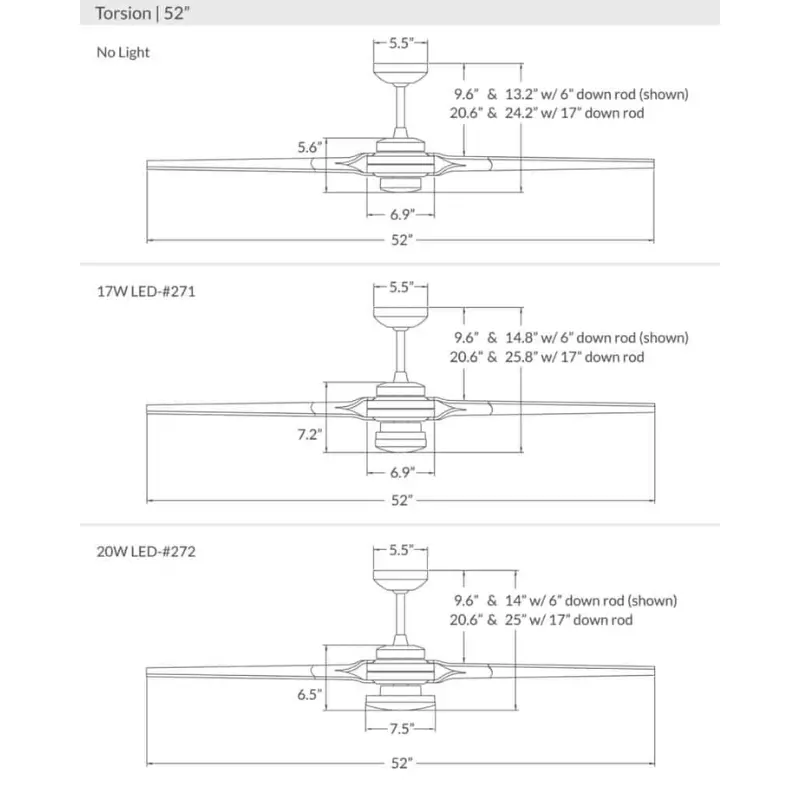

Dimensions (w/ 6″ down rod):

• 14 H x 52 Dia. inches
• Base Dia. 5.5 inches
• Weight: 15 lbs

Light Source:

• 20W LED
• 1800 Lumens
• Color Temperature: 3000K
• 90 CRI (Dimmable)
• Light is behind an opal glass diffuser

Downloads:

• Cutsheet
• Installation Manual

Looking for this fan without an LED option? Check out the Torsion – 52.
